Exposed Fastener Panels

STRONG, VERSATILE & BUDGET-FRIENDLY

Sometimes called through-fastener, exposed fastener metal panels are installed using screws that go through the top of panels and fasten directly to the roof deck resulting in the distinctive look of visible fasteners.

  • Strong, lasting performance
  • Classic metal roof aesthetic in variety of styles
  • Great choice for mansard roofs, soffits and other accents
  • Ideal for interior applications such as accent walls or ceilings
  • Lengths up to 50’
  • Available in 50+ colors with matching painted fasteners
  • Finish warranties† up to 50 years / Metal warranties† up to 25-1/2 years

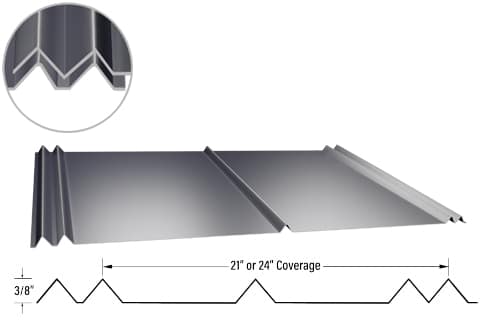

IM5VC
Classic 5V Crimp Panel

Coverage Width: 24″ Standard; 21″ Option
‡Slope: 1/2:12 minimum
Rib Height/Spacing: 3/8″; 12″ O.C.
Metal/Gauge: 26- and 24-Gauge Galvalume®/.032 and .040 Aluminum
Support: Plywood or Wood Plank

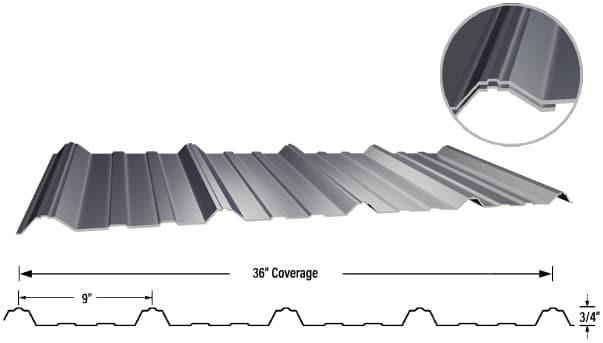

IM36TR
3/4" Bell Top RIB Panel

Coverage Width: 36″
‡Slope: 1/2:12 minimum
Rib Height/Spacing: 3/4″; 9” O.C.
Metal/Gauge: 29-, 26- and 24-Gauge Galvalume®
Support: Plywood or Wood Plank/Open Framing

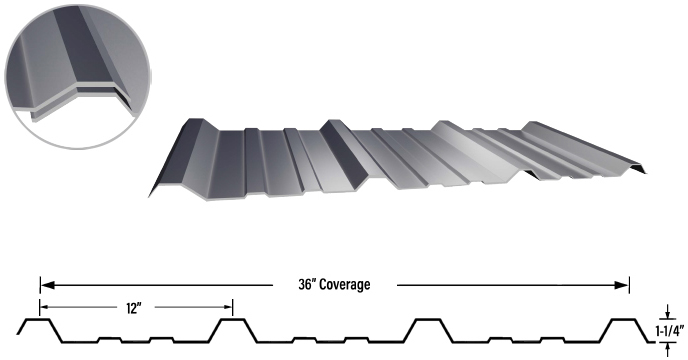

IM36PBR
1-1/4” RIB Panel

Coverage Width: 36″
‡Slope: 1/2:12 minimum
Rib Height/Spacing: 1-1/4″ ; 12″ O.C.
Metal/Gauge: 26- and 24-Gauge Galvalume, 22-Gauge special order
Support: Plywood or Wood Plank/Open Framing

†Talk with an Integrity Metals representative for full warranty details and restrictions. ‡Minimum slope with sealant per FBC 1507.4.2; consult with local municipality for applicable controlling building codes that may affect your project. Galvalume® is a registered trademark of BIEC International Inc.
WE'RE HERE FOR YOU

Interested in installing Exposed Fastener Metal Panels for your next project? Contact the metal roofing experts at Integrity Metals at 772-584-2654 to discuss you design objectives.

Download Exposed Fastener Literature

Exposed Fastener Panel Specs

Metal Panel Comparison
